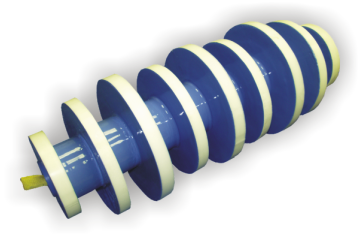

Ultra-Seal Lite Pipeline Pig

Alll Pigs Logo

Ultra-Seal Lite
Pipeline Utility Pigs

Ultra-Seal Lite Pipeline Pigs

Custom Built for Purpose

The Ultra-Seal Lite Pig is a hand-crafted, custom-built pig. The specific design and materials for each pig are determined by the configuration of the pipeline and operational requirements of the pig. Typically the Ultra-Seal Lite Pig is used for dewatering and fluid control in multi-dimensional pipelines.
Ultra-Seal Lite Pipeline Pigs

One-Piece Construction

The Ultra-Seal Lite is a one-piece urethane foam pig that is reinforced with integral urethane elastomer end discs and center post.


Ultra-Seal Lite Pipeline Pig Cavities

Ultra-Seal Lite Options

Pig Tracking: Adapters: Ultra-Seal Lite Pigs are available with optional pig-tracking transmitter adapters to accommodate acoustic "pingers", electromagnetic transmitters, high-strength magnets and nuclear tracking sources.
By-Pass Ports: Ports running the length of the body.
Handling straps: Nylon handling straps or ropes embedded in the body of the pig.


Ultra-Seal Lite Pipeline Pigs
The Ultra-Seal Lite Pig is patented. U.S. Patent No. 5,895,619.
Ultra-Seal Lite, K-Lite and K-Duro are registered trademarks of Knapp Polly Pig, Inc.
**Please Note that it is very important to provide the actual inside diameter of the pipeline when ordering a Knapp Ultra-Seal Pig.

K-Duro Pipeline Pig Foam
*K-Duro is Knapp's exclusive heavy-density urethane foam. K-Duro is an open-cell, 8-10 pound per cubic foot density, urethane foam designed for more strength, longer distance, and heavier service than K-Lite foam
K-Lite Pipeline Pig Foam
*K-Lite is Knapp's exclusive medium denstiy urethane foam. K-Lite is a proprietary, open-cell, 5-8 pounds per cubic foot density, urethane foam designed specifically for use in pipelines. K-Lite foam has a high tear strength and medium stiffness, it is more flexible than Knapp's K-Duro foam.
